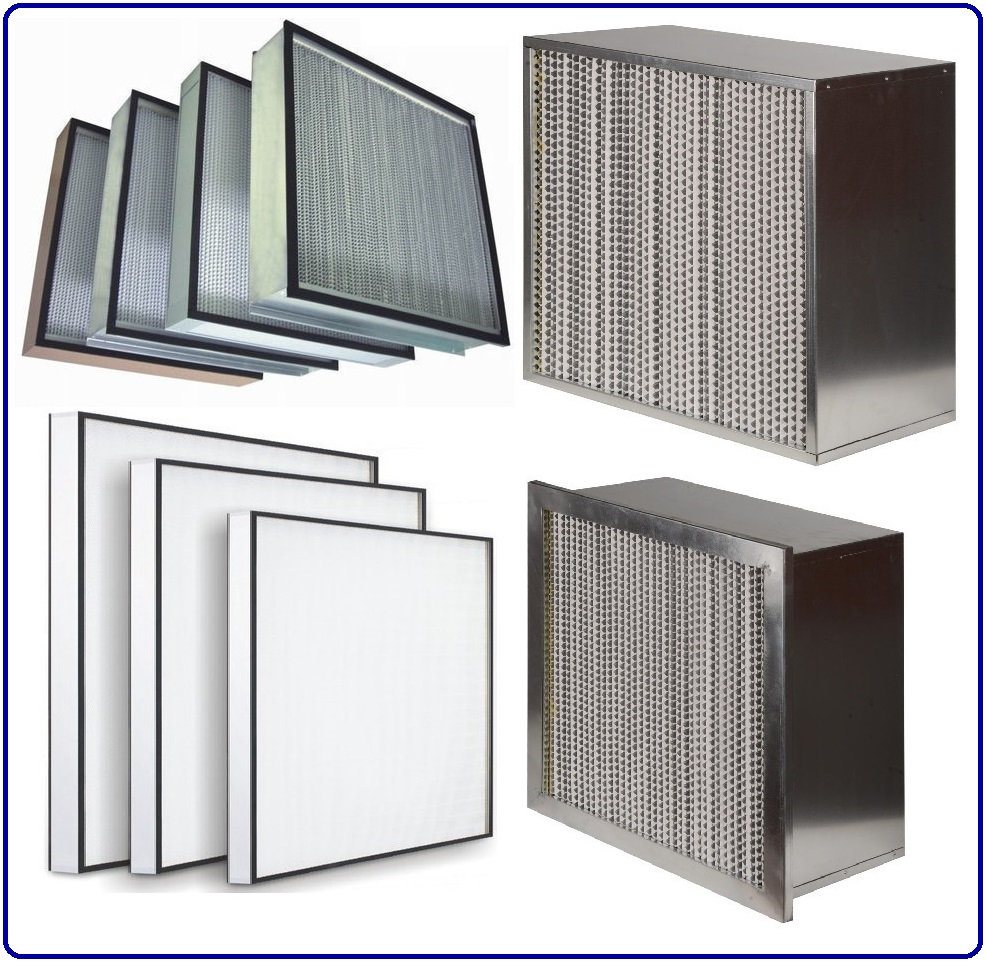

Deep Pleat HEPA/ ULPA Filters

• Application: Filtration in Clean-room & LAF Benches
• Filter Class: H10-H12
• Case: Sandblasted Aluminum Anodized extruded section
• Media: Micro-Glass Fiber
• Separator: Hot Melt Glue
• Sealant: Polyurethane based adhesive
• Gasket: Neoprene Rubber
• Initial pressure drop: ≤ 150 Pa
• Rec. final pressure drop: 300 Pa
• Application Temperature: 70°C in Continuous service
• Face Velocity: upto 1.25 m/s

Mini Pleat HEPA Filters
We offer the complete range of mini pleat HEPA filters manufactured in wide variety of custom depths. Media Glass fiber, Separators Glass Fiber, Frame SS 304/ 316, Aluminum Extruded (Peripheral channel & Knife edge) Grill One/both side epoxy coated grill Pressure Drop initial 12 to 18 mm Wc, max working pressure 50 mm Wc, Temperature Ambient to 120ºċ, Test individually tested as per norms.
